There's a specific kind of PC nostalgia reserved for the 486. Not the raw novelty of the 8086, not the glossy Pentium marketing blitz, just the quiet workhorse era in between, when a computer went from being a glorified word processor to something that could genuinely run a game, a spreadsheet, and a modem connection without falling over. The 486 is where DOS gaming grew up and where Windows stopped being a toy. It's also where Intel learned to sell the same chip four or five different ways, which is a story worth telling on its own.
Why the 486 Was a Bigger Deal Than the Numbers Suggest
On paper, the jump from the 386 to the 486 looks modest. Clock speeds only crept up a little at first, 16MHz and 20MHz 386 systems gave way to 20MHz and 25MHz 486 ones. But clock speed was never really the story here. Intel folded three separate chips worth of functionality onto a single piece of silicon: the CPU core, a proper 8KB Level 1 cache, and, for the DX version, a floating point unit that had previously lived as a separate 387 coprocessor chip you bought and socketed yourself. It was also the first x86 design built around a tight, genuinely pipelined instruction path, meaning it could start working on a new instruction before the last one had fully finished. Put that all together and a 486 at the same clock speed as a 386 ran roughly twice as fast in real terms. That's before you factor in any MHz increase at all.
The Family Tree: SX, DX, SL, DX2, DX4
Intel's 486 lineup grew messier every year, mostly for marketing reasons rather than engineering ones. Here's how it actually broke down:

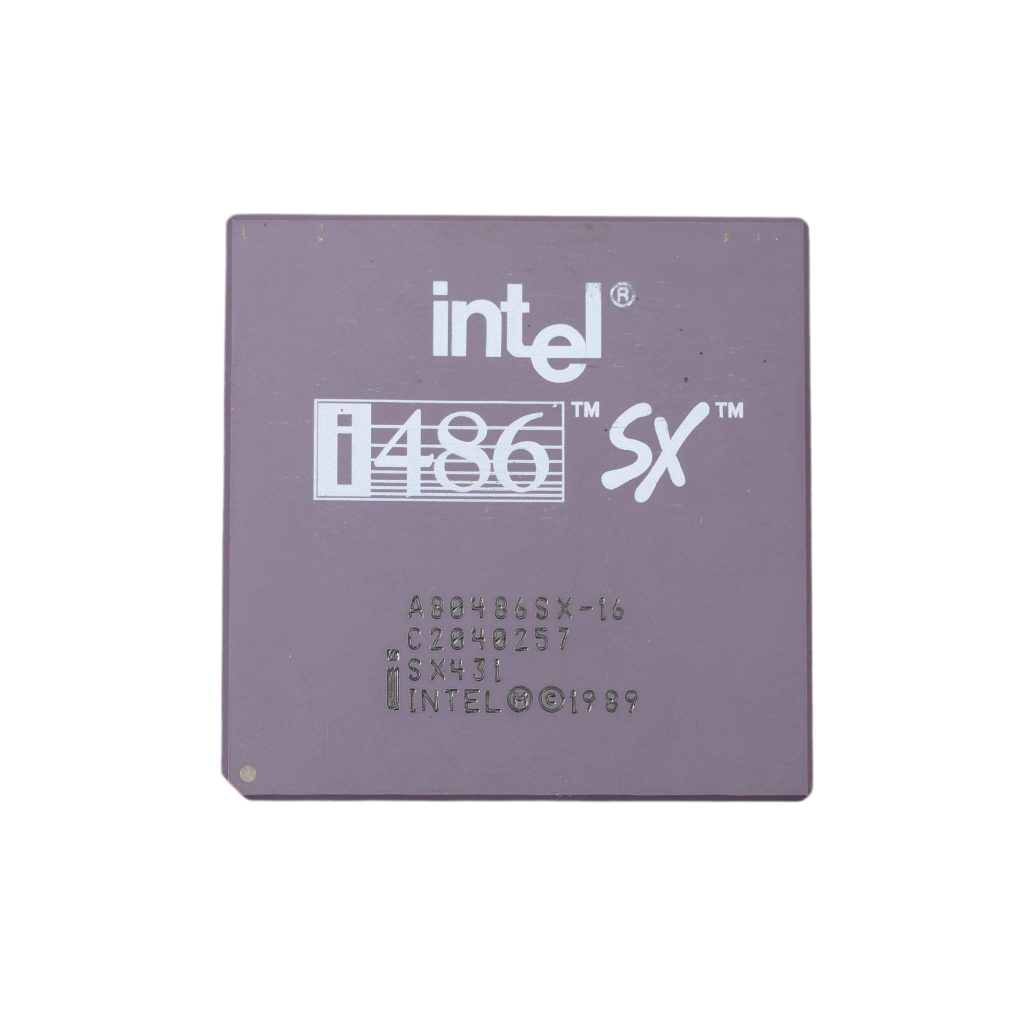

The 486DX was the original, full fat chip launched in April 1989, complete with the integrated FPU. The 486SX, which arrived in September 1991, was the budget option: the same die, but with the floating point unit disabled or physically removed. For most home users this barely mattered, since very few DOS games of the era actually used floating point maths, Doom included. If you did need it, Intel sold you the separate 80487 coprocessor upgrade chip, which was really just a full DX processor in disguise that took over from the SX entirely.
Then came the clever bit. In March 1992, Intel released the 486DX2, which ran its internal logic at double the speed of the motherboard bus while everything else on the board stayed the same. A 33MHz bus paired with a DX2 gave you a chip running at 66MHz internally, all without needing a new motherboard. It sounds like a trick because it was one, but it worked brilliantly and became the sweet spot of the entire 486 generation. The 486SL, introduced around the same time, wasn't about speed at all. It was a low power variant built for the growing laptop market, with proper power management and a lower voltage option.

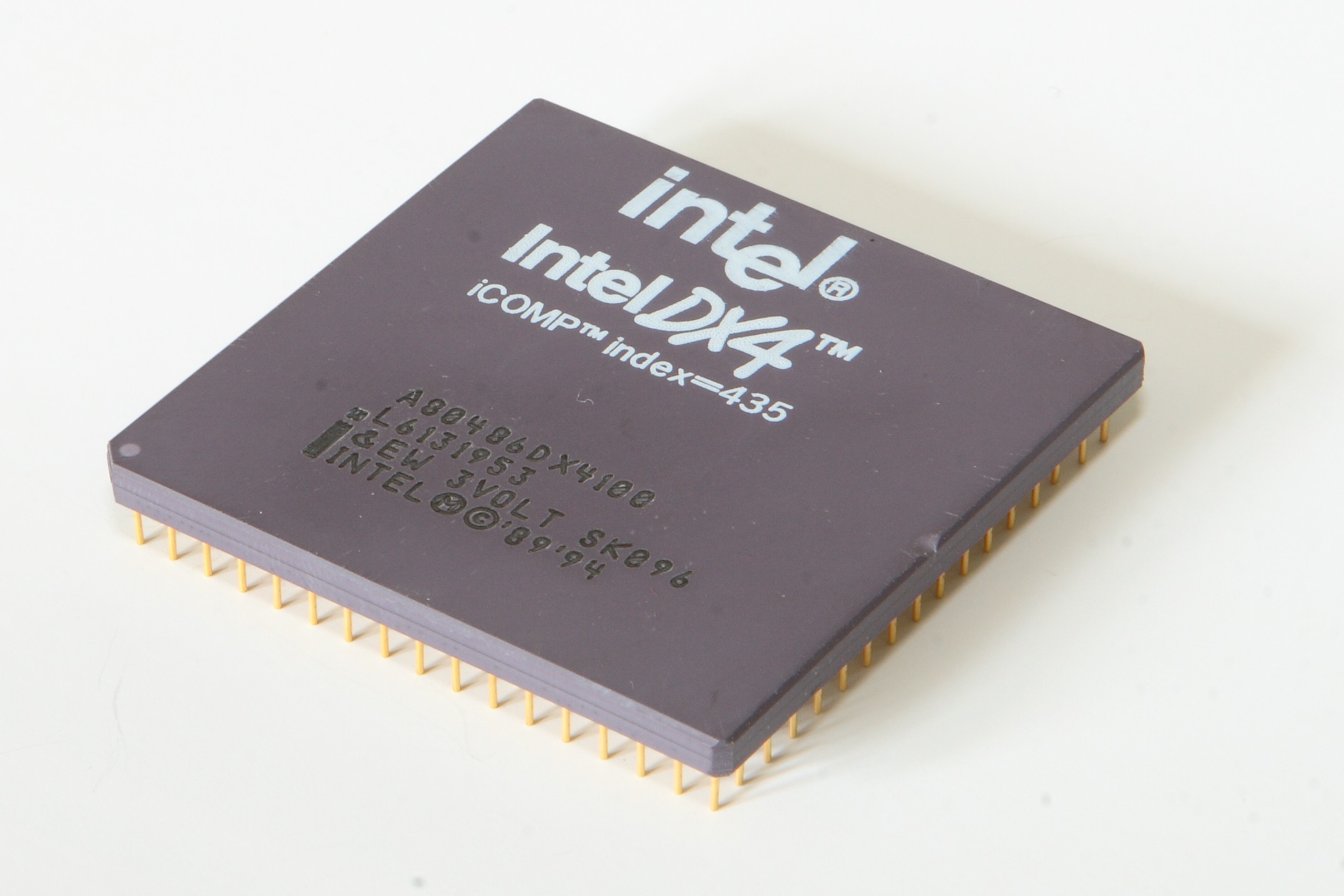

By 1994, with Intel's next generation chip already on shelves, the company squeezed out one final act: the 486DX4. Confusingly, it didn't quadruple the clock, it tripled it, and doubled the onboard cache to 16KB in the process. A 33MHz bus with a DX4 installed gave you 100MHz, a figure that felt genuinely futuristic for a chip family that had started out at 20MHz five years earlier.
What a Few Extra MHz Actually Bought You
This is the part that trips people up today, because modern chips hide their clock speed behind layers of cores, cache, and instructions-per-clock improvements that make raw MHz almost meaningless as a comparison. A 486 wasn't like that. There was one core, no hyperthreading, no turbo boost, and instruction complexity barely changed generation to generation. That meant clock speed translated into performance in a far more direct, almost linear way. Going from a 25MHz 486 to a 33MHz one wasn't a rounding error, it was a genuine 32 percent jump in how fast your spreadsheet recalculated or how smoothly a flight sim scrolled the horizon. Jump to a DX2-66 and you'd roughly doubled your CPU throughput compared to a DX-33, using the exact same motherboard.
Compare that to now, where going from a chip clocked at 4.5GHz to one at 4.8GHz might net you a few percent in a benchmark and nothing you'd notice in daily use, because so much of a modern CPU's speed comes from core count, cache size, and clever scheduling rather than the clock number on the box. In the 486 era, MHz was close to the only lever Intel had, and buyers knew it. Adverts from the period lead with the clock speed in huge type because it was, genuinely, the headline spec that told you what you were getting.
What It Cost in the UK
486 ownership wasn't cheap. A complete Dan Technology system built around a DX2-66, with 4MB of RAM, a 1MB graphics accelerator, a 1.6GB hard disk, and Windows 3.1 preinstalled, retailed for £2,981 in 1993. That's before you account for inflation, which puts the real terms cost well north of £6,000 today. Laptops were worse: a Viglen Dossier fitted with a 486SX-25 and a mono LCD screen came in at £1,399, and that was considered reasonable for the category. Even memory alone wasn't trivial, 2MB of RAM typically ran about £100, with 4MB closer to £160, at a time when 4MB was still a fairly generous amount for a Windows machine. For context, a 286 based PC just a year or two earlier had been going for around £900, so the 486 represented a genuine step up in both capability and price, not just a numbers game.
How Windows Actually Used the 486
Windows 3.0, released in May 1990, was really the first version built with the 486's strengths in mind, even though it ran perfectly well on a 386. Windows 3.1, which followed in April 1992, is where the pairing became inseparable. The 486's integrated cache and FPU meant Windows could juggle TrueType font rendering, multitasked applications, and the beginnings of multimedia extensions without grinding to a halt the way it would on older hardware. Protected mode, virtual memory, and the ability to run several DOS boxes at once all leaned hard on the 486's more capable memory management unit. By the time Windows for Workgroups and early multimedia PC specifications arrived, a DX2 with a sound card and a CD-ROM drive had become the baseline for anything calling itself a proper home computer, not the exception.
Apps and Gaming on the 486
This is where the chip earns its place in PC gaming history. The 486 generation covers the release windows for Wing Commander, Civilization, id Software's Wolfenstein 3D and then Doom, and the first wave of CD-ROM multimedia titles that needed real horsepower just to decode video and audio at the same time. Doom in particular became an unofficial benchmark of the era, a 386 could limp through it, but a 486DX2-66 was widely regarded as the machine to actually play it properly, with smoother scrolling and none of the chugging that plagued slower setups. Flight simulators and early 3D titles benefited enormously from DX models with a working FPU, since trigonometry heavy code ran natively rather than being emulated in software, which could slow things to a crawl on an SX. On the productivity side, this was also the generation where Lotus 1-2-3 for Windows, early versions of Word and Excel, and CAD packages became genuinely usable rather than something you tolerated.
The Pentium Arrives, and the 486 Refuses to Leave
Intel announced the Pentium on 22 March 1993, and it wasn't a modest upgrade. Where the 486 processed one instruction per clock cycle at best, the Pentium's superscalar design used twin execution pipelines to handle two instructions at once, alongside a much wider 64 bit data bus. Initial pricing reflected that ambition, the 60MHz Pentium launched at $878 and the 66MHz version at $965, chip prices alone, before you'd bought a single other component. That put early Pentium systems well beyond most home budgets, with complete desktop setups starting around $3,000 to $5,000 in the US.
So the 486 didn't simply vanish. It spent 1993 and 1994 as the sensible option while the Pentium sorted out its pricing and, famously, a floating point division bug that dented Intel's reputation shortly after launch. The DX4's arrival in March 1994, a full year after the Pentium had already been announced, says everything about how much life was still left in the platform. Cheaper, more available, and backed by a mountain of existing DOS and Windows 3.1 software, a well specced 486 remained a genuinely sensible buy right up until Windows 95 started nudging the market toward Pentium as the new baseline.
The Legacy
The 486 didn't reinvent the PC the way the original IBM 5150 or the GUI revolution had. What it did was make the PC dependable. It's the chip that turned Windows from an interesting experiment into a daily driver, and turned PC gaming from a niche hobby into something with real commercial weight behind it. Five years, five model variants, and a clock speed range from 20MHz to 100MHz might not sound like much next to what followed. But for anyone who sat in front of a DX2-66 running Doom for the first time, it was more than enough.
